Sunport C6 II MWT Mono PERC Module S-FLEX Eff. 21.8% 365w 370w 375w 380w 385w

Name: Sunport C6 II MWT Mono PERC Module SFLEX Eff 218 365w 370w 375w 380w 385w
Brand: Sunport
Price: 0.27 USD

China Sunport C6 II MWT Mono PERC Module S-FLEX Eff. 21.8% 365w 370w 375w 380w 385w wholesale

Brand Name : Sunport

Model Number : C6 II QHES

Certification : CGC，ISO9001:2015，TUV SUD，PV，CNAS，

Place of Origin : Jiangsu, China

MOQ : 1pcs

Price : $0.27~0.3/Watt

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200000 Watt/Watts per Week

Delivery Time : To be negotiated

Packaging Details : pallet

Product name : MWT Flexible Solar Panles

Cell size : 166*83mm

Panel Efficiency : 21.8%

Installation Module Dimension : 1840mm*1040mm*2.5mm

Encapsulant : POE

Contact Now

Sunport Power S-FLEX 365-385W Customizable MWT Flexible Solar Panels

The Sunport Power S-FLEX 365-385W Customizable MWT Flexible Solar Panels are innovative and high-performance photovoltaic modules designed to provide flexible and customizable solar power solutions. These solar panels are manufactured by Sunport Power, a leading solar panel manufacturer known for its advanced technology and reliable products.

The S-FLEX series offers a power range of 365W to 385W, providing a substantial amount of electricity generation. The high wattage output ensures that these panels can meet the energy demands of residential, commercial, and industrial applications, making them suitable for a wide range of solar installations.

The key feature of the S-FLEX panels is their flexibility. They are designed with Metal Wrap Through (MWT) technology, which allows for increased flexibility and bending capabilities. This flexibility enables the panels to conform to various curved and irregular surfaces, expanding the possibilities for solar integration and installation.

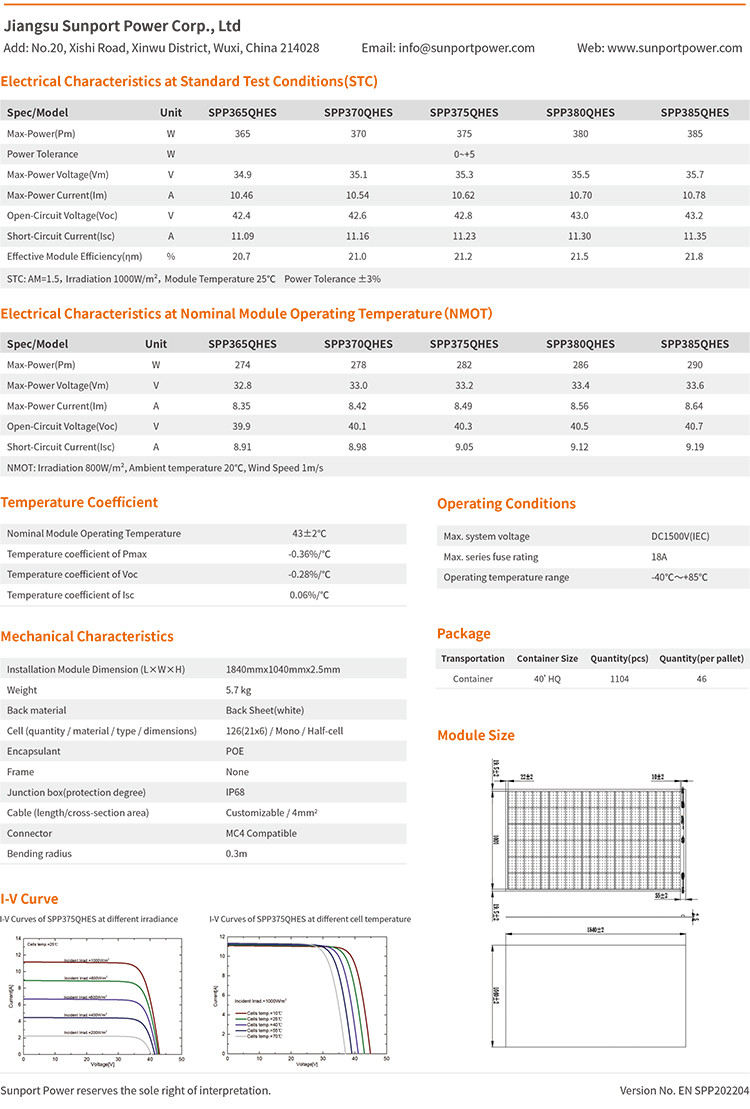

Max-Power(Pm)	365w	370w	375w	380w	385w
Power Tolerance	0~+5
Max-Power Voltage(Vm)	34.9	35.1	35.3	35.5	35.7
Max-Power Current(lm)	10.46	10.54	10.62	10.70	10.78
Open-Circuit Voltage(Voc)	42.4	42.6	42.8	43.0	43.2
Short-Circuit Current(lsc)	11.09	11.16	11.23	11.30	11.35
Module Efficiency(qm)	20.7	21.0	21.2	21.5	21.8
Operating Temperature(°C)	-40℃～+85℃
Maximum system voltage	DC1500V(IEC)
Maximum series fuse rating	15A
Temperature coefficients of Pmax	-0.36%/°C
Temperature coefficients of Voc	-0.28%/°C
Temperature coefficients of Isc	0.06%/°C
Nominal operating cell temperature(NOCT)	43±2°C

Sunport C6 II MWT Mono PERC Module S-FLEX Eff. 21.8% 365w 370w 375w 380w 385w

TECHNOLOGY COMPARISON

Compared with conventional module, MWT modules reduce 3% shaded area with no busbars. MWT module technology replaces string ribbon by conductive back sheet, abandoning strain, micro-crack and results power degradation, greatly improving stability and reliability.

— Structural Feature —

MWT
Positive and negative electrodes are both on the rear side of solar cell

Conventional
Positive and negative electrodes are located on opposite sides of the cell

— Cell Structure —

MWT
Busbar-free design exhibits higher power output by decreasing shading area up to 3 %

Conventional
Conventional design covers more cell surface from the main busbars, therefore the power output is limited

— Module Encapsulation —

Replace conventional soldering with conductive foil and 2D encapsulation structure

Conventional Cells connected by string ribbons

Sunport C6 II MWT Mono PERC Module S-FLEX Eff. 21.8% 365w 370w 375w 380w 385w

FAQ

Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
